Top Mounting Brackets

The Clover Bracket replaces the need to stock separate 90° and 180° U-Channel caps. Its distinctive four-leaf clover profile accommodates both orientations with a single bracket — simplifying inventory, improving cash flow, and giving crews the flexibility to adapt in the field. Compatible with all standard U-Channel posts and both flat and extruded sign blades.

Adjustable cross pieces and caps that mount street name signs at any angle, available in 3-1/2", 5-1/2" and 12" slot for both flat and extruded blades. Perfect for intersections where streets don't meet at 90-degree angles - adjust the bracket to align signs parallel to the road direction.

Cross piece sign brackets for mounting signs at 90-degree intersections. Perfect for street name signs and directional signage where two signs meet perpendicularly. Available in multiple slot sizes for both flat and extruded sign blades.

NEX post caps for 2" octagonal NEX posts, designed specifically for street name sign mounting. Available as sign-mounting caps for flat blade signs and decorative rain caps for weatherproofing post tops. Rain caps used with side-mount or direct mount sign installations.

Box-type street name signs made from aluminum extrusion are 1" wide by 9" or 6" high and come in various lengths. Box blade street name signs offer a distinctive, boxy appearance, preferred by many California municipalities as an alternative to traditional flat blade street signs. These brackets accommodate the unique dimensional requirements of box style signage for side or top of post mounting.

Round post caps for 2-3/8” and 2-7/8” round post available in 3-1/2”, 5-1/2”, 12”, 18" and 24" slots for flat and extruded sign blades. Fasteners come pre-installed, ready to mount.

Square post caps for 1-3/4” and 2” square posts are available in 5-1/2” and 12” slots for flat and extruded sign blades. Fasteners come pre-installed, ready to mount.

U-channel 90-degree post caps available in 3 ½”, 5 ½”, 12”, 18" and 24" slots for flat and extruded sign blades. The blade sits 90 degrees to post flange. Brackets are drilled and tapped for 5/16" set screws; on the opposite side, a 9/16" clearance hole is drilled for bolt-through installation.

U-channel 180-degree post caps available in 3 ½”, 5 ½”,12”, 18" and 24" slots for flat and extruded sign blades. The blade sits 180 degrees to post flange. Brackets are drilled and tapped for 5/16" set screws; on the opposite side, a 9/16" clearance hole is drilled for bolt-through installation.

Universal post caps fit on both round and square posts, thus offering increased flexibility. Available in 5 1/2", 12", 18" and 24" slots for both flat and extruded blades. Mounting hardware comes installed on brackets saving time and hassle.

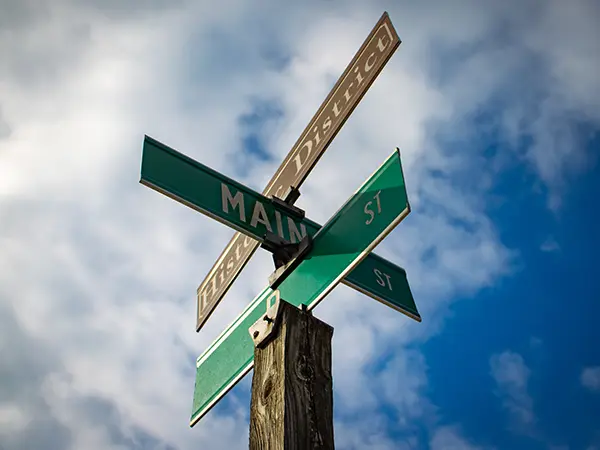

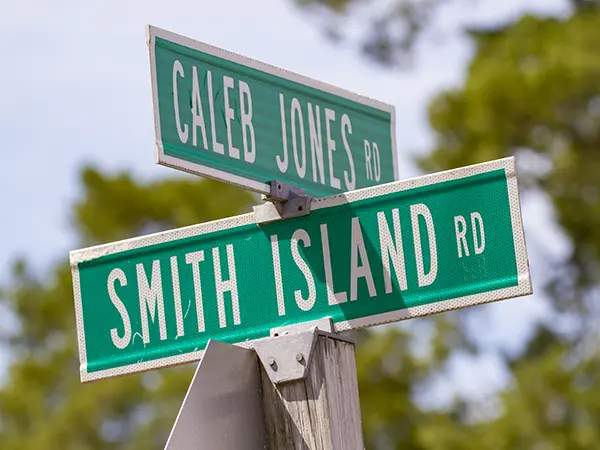

We offer 4x4 wood post caps for flat and extruded blades, available in 5", 6" and 12” slot lengths. Fasteners come pre-installed, ready to mount.
